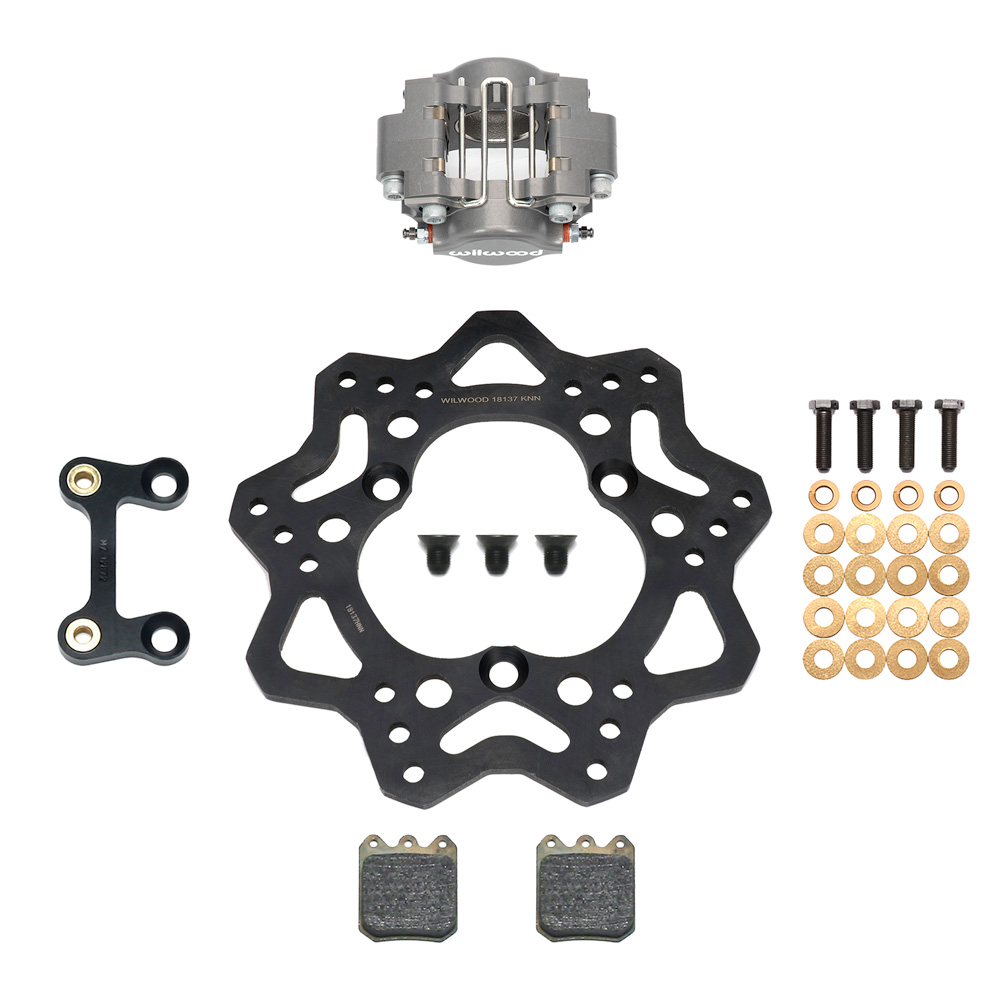

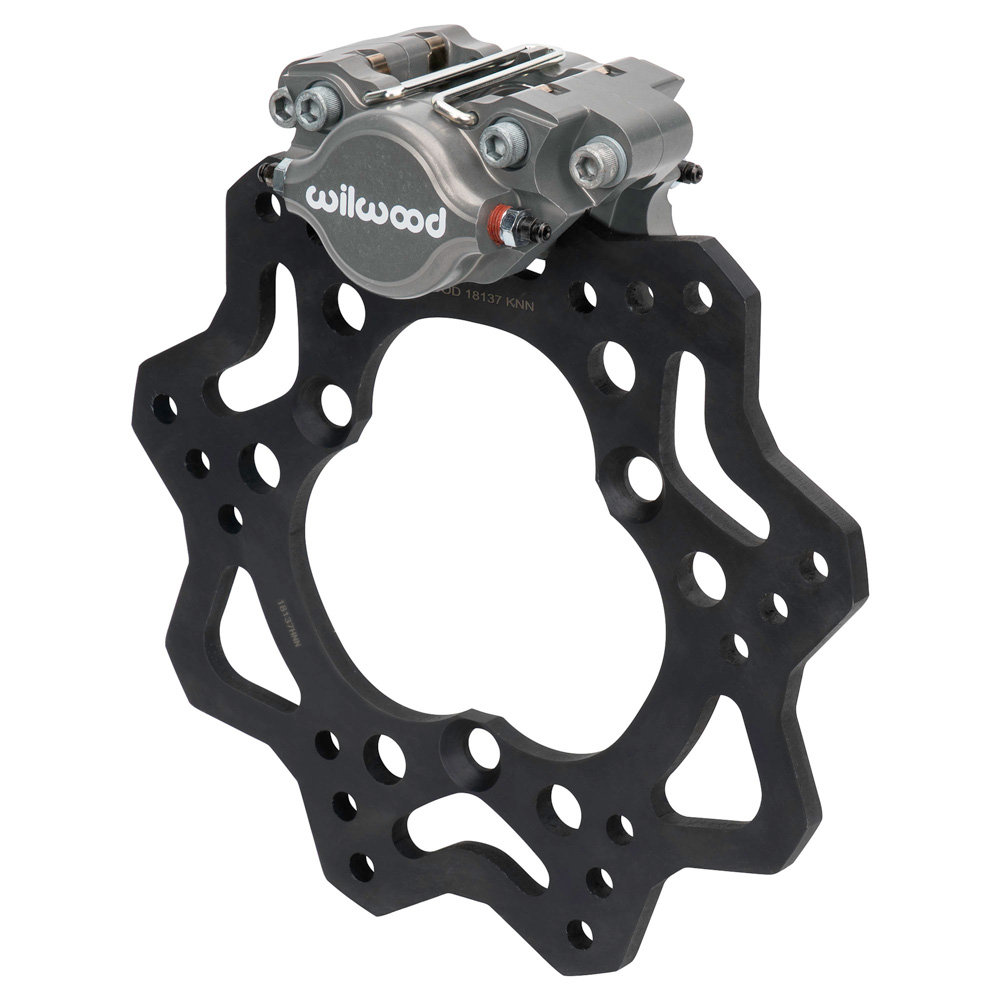

Wilwood now manufactures a high-performance scalloped rotor kit that is also a great option to fine-tune the left front on a winged sprint car. The smaller, lighter 10.20 inch steel rotor package provides better wheel clearance and offers improved pedal feel, making this kit the most tunable, controllable feel to fit any track/driver needs by simply changing brake pad compounds.

CALIPER: DPS, DYNAPRO SINGLE

• Forged aluminum that weighs in at less than two pounds
• Universal mounting options for front or rear bearing carrier location
• Low fluid displacement, translating to better pedal feel with less travel
• tipe III Hard Anodized shell inside and out adds protection for longer life

ROTOR: STEEL SCALLOPED

• Steel scalloped and drilled 10.20 inch x 0.31 inch rotor
• Black E-Coat finish provides oxidation protection
• Popular 3 x 5.00 inch mount
• Weighs only 3.20 pounds

BRAKE PADS: BP-40

• Composite metallic BP-40 compound for high temperature, provides long life, and has great pedal feel
• Tuning pads BP-28 and BP-45 are also available

INSTALLATION PARTS

• All premium-grade installation hardware included with kit
