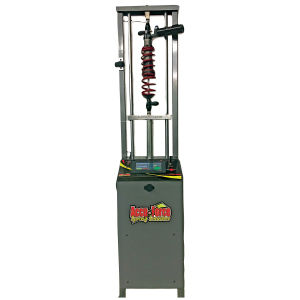

Accu-Force Spring Smasher - Automated Touch Screen Model

• Up to 50 Owner Programmed Preset Tests Used to do Automated Testing
• Choose the Data Points You Want to Save Every .125, .250 or .500 of an inch
• Displays 4 Measurement Outputs • Center to Center, Travel Distance, Total Load, & Offset Load
• Saves up to 200 Test Result Files

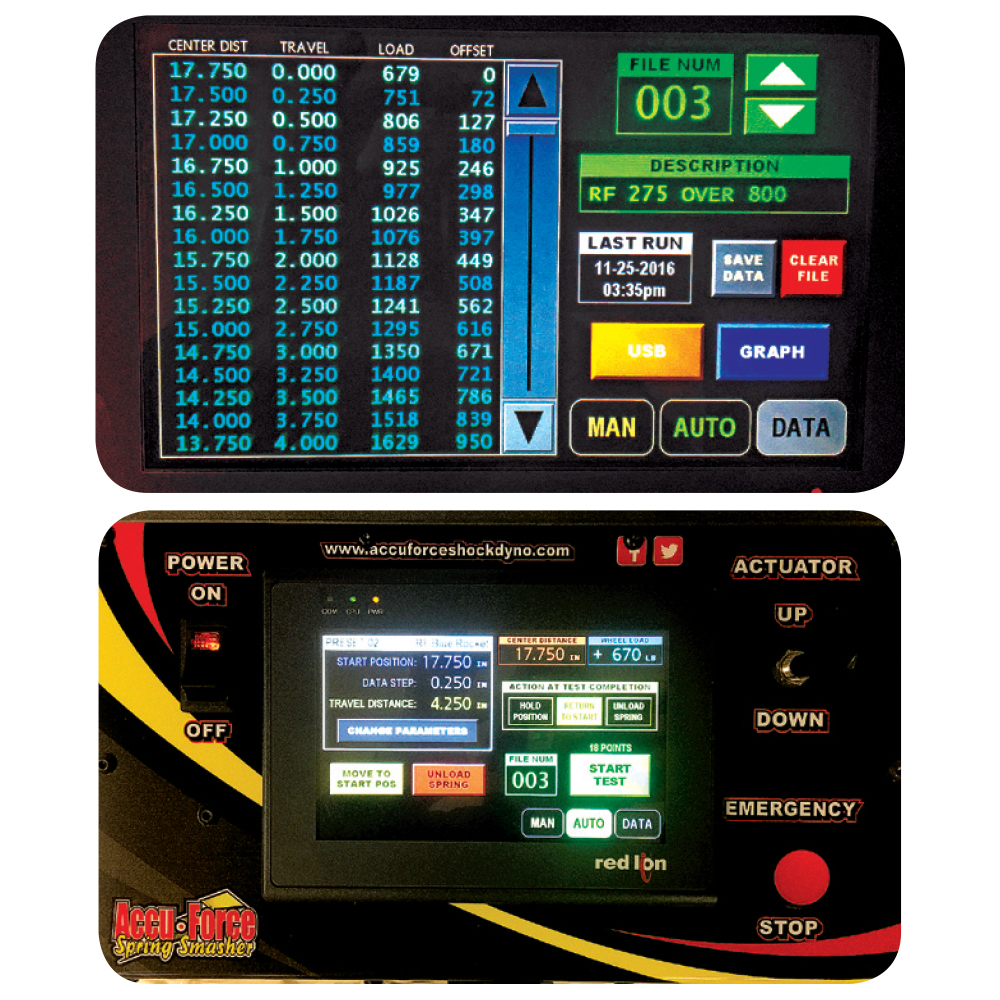

• Graph Screen Allows Overlay of up to 4 Tests
• Has Compression and Rebound Test Mode
• Also Capable of Transferring Data to Excel to Store & Graph on Your Computer
• May Still Be Used as Manual Tester & Can Plot a Graph Manually Like Our USB Model
• Can be Set to Use in Pull Mode to Test Limiters & Pull Bars
• Can Be Set to Metric Mode
• Optional Coil Over Spring Loader Available
• Use Machine to Analyze Bump Stops & Double Stack Springs
• 3500# Capacity
• 115 Volt Power Supply
• Electric Actuator with Brake Provides More Stable Reading than Air or Hydraulic Models
• Dimensions: 15” x 15” x 72” Tall

SHIPS VIA TRUCK
