All JOES Racing Products Micro Sprint axles are built in house. They utilize CNC machined and laser cut components that are TIG welded together within CNC machined jigs/fixtures to ensure consistency and reliability that you can count on time after time.



Axles are manufactured in two different lengths for different tracks and wing/non-wing configurations



AXLE SPECIFICATIONS:



Width



25650 – Wing Axle = 40.0″

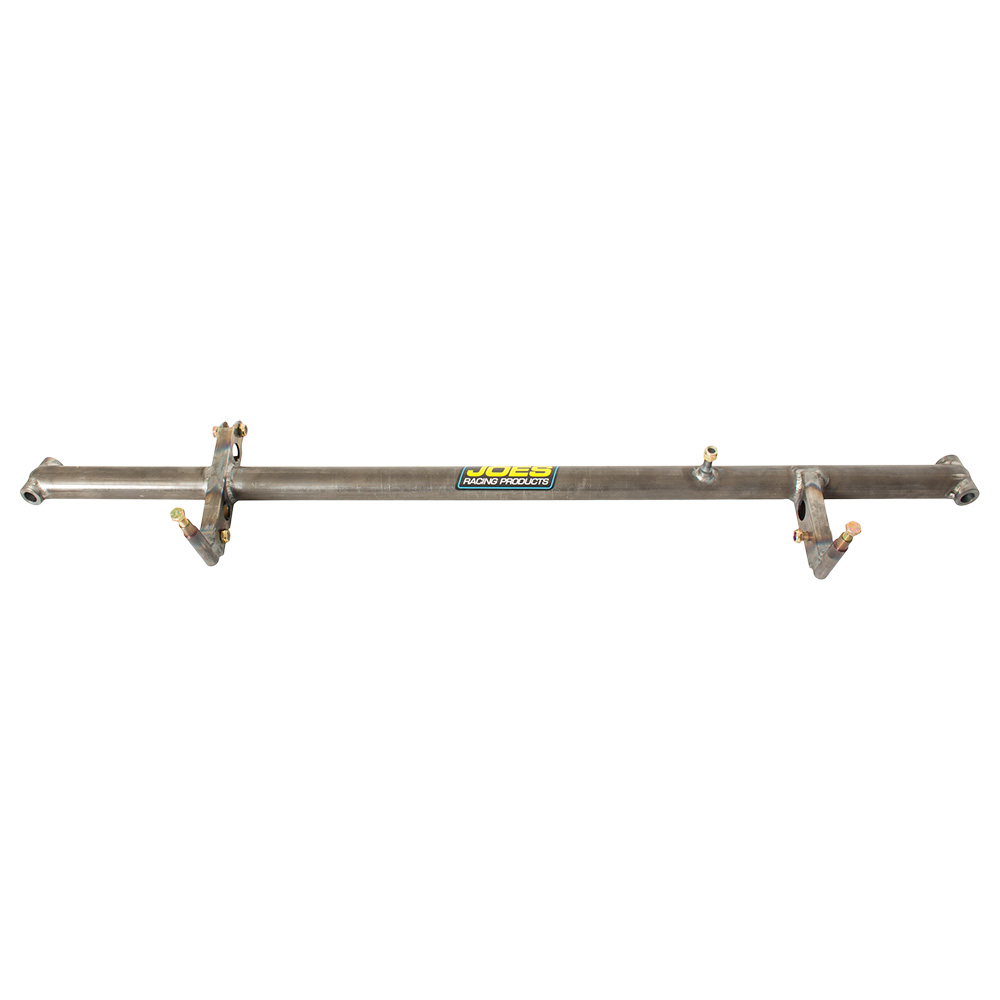

25670 – Non-Wing Axle = 42.0″ (2″ longer right side)

Tube



DIA – 1½” Chromoly Steel DOM

CNC Machined to ensure repeatability in production

Spindle Boss / Kingpin



CNC machined Spindle Boss

Spindle Boss Diameter is 1⅛” x 2.080″ Height

.625 Diameter Kingpin

Axle Geometry



RT 12 Camber / 10 Caster

LT  8 Camber / 7 Caster

Designed for 10° Spindles

Radius Rod / Shock Mounts



10.5° angle

Laser cut rectangular tube for strength

TIG Welded in a CNC machined jig for consistency
