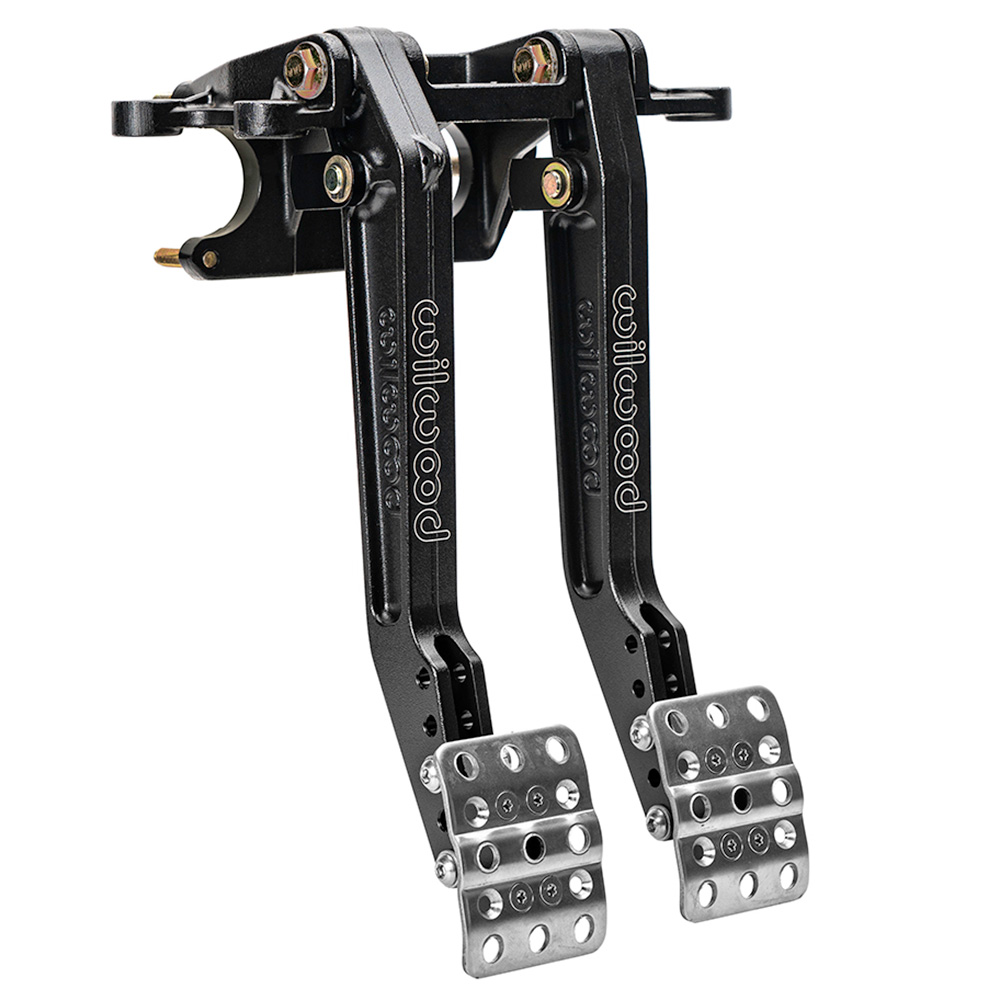

PEDAL ASSEMBLY,TANDEM W/SINGLE M/C,FWD

  • Name: PEDAL ASSEMBLY TANDEM W/SINGLE M/C FWD MT BRAKE/CLUTCH ADJ RATIO 6.25-7:1 Wilwood Racing Disc Brakes
  • Part Number: WIL340-16384
  • Brand: Wilwood Racing
  • $298.75
  • List Price: $298.80
  • You Save: 0%

Usually Ships In 3-5 Business Days

Description

Swing Mount Tandem Brake and Clutch Pedal-Adj Rt - Product Description

Pedal 1 Ratio: 6.25-7:1
Pedal 2 Ratio: 6.25-7:1

Adjustable ratio brake pedal and clutch pedal combo, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference.The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts a 2.25 inch vertical mount flange single outlet master cylinder for the clutch, and a Wilwood 3.25 inch horizontal flange tandem master cylinder for the brakes, available separately in a variety of styles and bore sizes.
