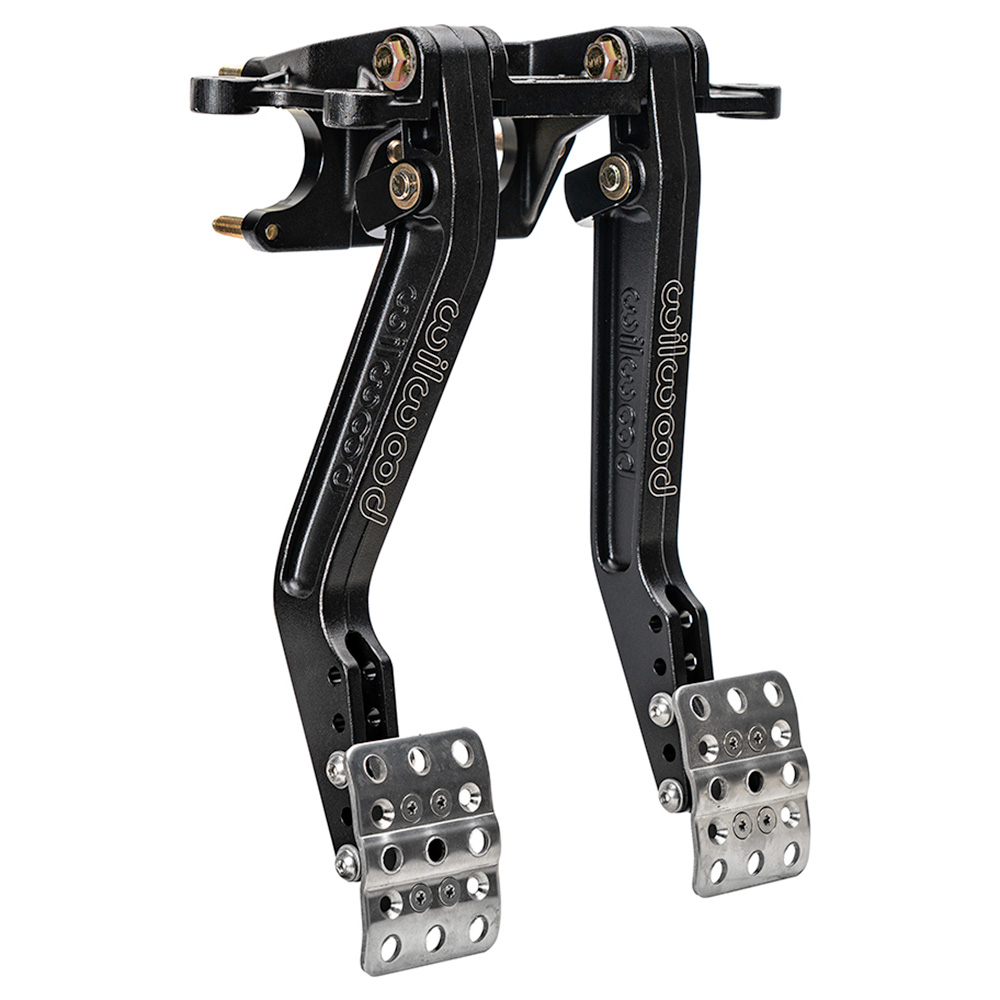

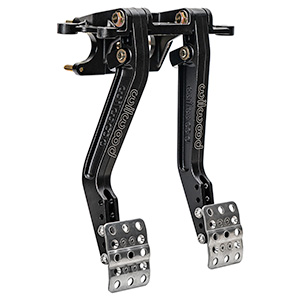

PEDAL ASSY,TANDEM W/SINGLE M/C,FWD MT

  • Name: PEDAL ASSY TANDEM W/SINGLE M/C FWD MT BRAKE W/2.00 OFF CLUTCH ADJ 5.50-6.25:1 Wilwood Racing Disc Br
  • Part Number: WIL340-16833
  • Brand: Wilwood Racing
  • $298.75
  • List Price: $298.80
  • You Save: 0%

Same Day Shipping If Ordered Before 5pm

Description

Swing Mnt Tandem Brake and Offset Clutch Pedal - Product Description

Pedal 1 Ratio: 5.5-6.25:1
Pedal 2 Ratio: 5.5-6.25:1


Adjustable ratio brake pedal with offset clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 5 to 7 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. The clutch pedal accepts a 2.25 inch vertical mount flange single outlet master cylinder, while the brake uses a 3.25 inch horizontal mount flange tandem master cylinder, available separately in a variety of styles and bore sizes.
