Description

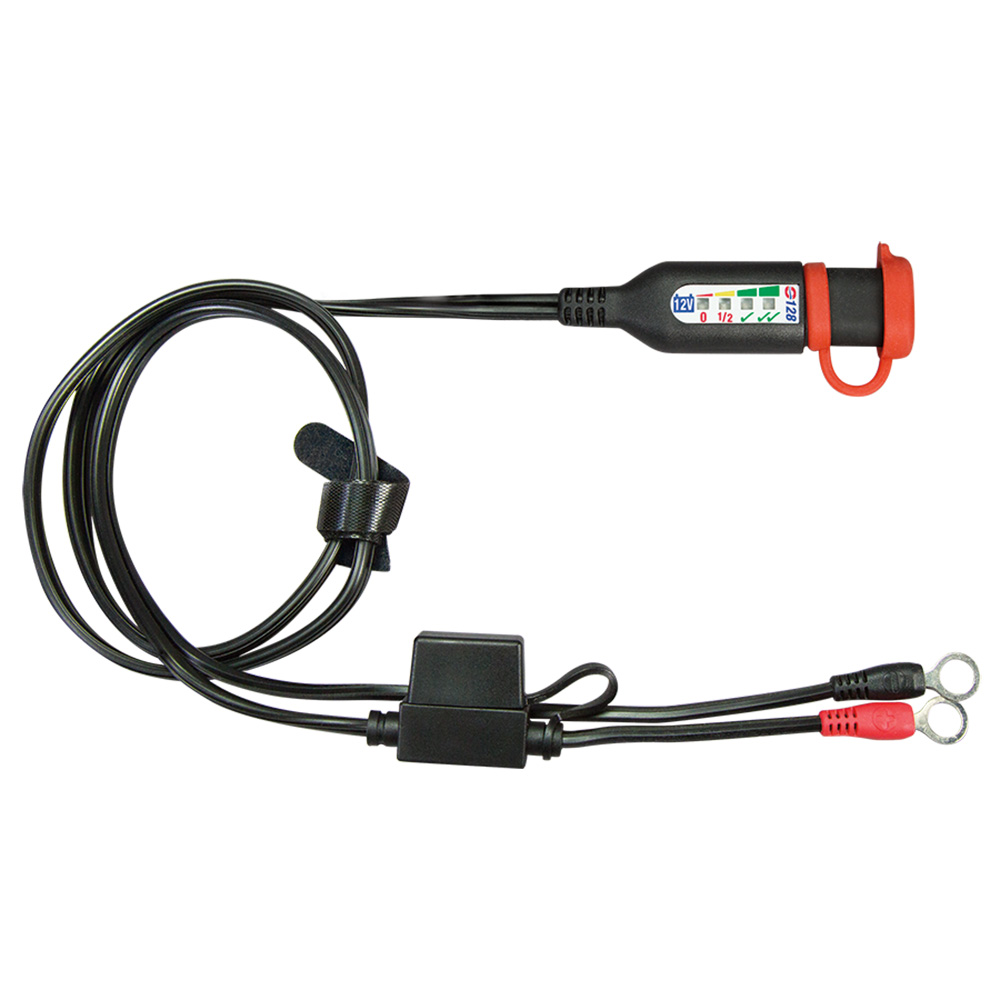

Smart battery lead that measures voltage; monitors charge of a ‘larger’ stored 12V lead-acid battery and confirms if the vehicle charging system is working correctly.
- LENGTH: 40″/100cm
- BATTERY CONNECTOR: 5/16” (M8) ringlets
- CHARGE CONNECTOR: 2-pin SAE, protected from dirt and liquid with rubber sealing cap and shroud.
- OPERATION: 2 automatic Modes – Battery charge level monitor (single LED blink mode) & Charging system test (arrow mode).
- Vehicle storage: 4 LEDs cover ‘full to empty’ voltage range of all 12V batteries, including higher voltage AGM for power sport (4th √√ LED ≥ 12.7V ). LED matching charge level blinks every 3 seconds (long term draw less than 0.2mA).
- Vehicle running: LED arrow mode activates when charge voltage reaches ideal charging voltage; up to minimum 13.5V (√ green LED) or ideal range 14V+ (√√ green LED).
- CABLE RATING: 16 AWG (1.31mm2) SPT-2W
- FUSE: 15 Amp
- USE: -40°C/-40°F very low temperature, remains flexible at ‘below freezing’ temperatures
- STYLE: Fully enclosed electronic circuitry with 4 LEDs, SAE charge connector with rubber sealing cap & shroud
- WARRANTY: 3-year limited replacement warranty
