P/N 18367 Eliminator Brushless Stealth Cell – 6 Gal
Eliminator Performance Plus Advanced Technology

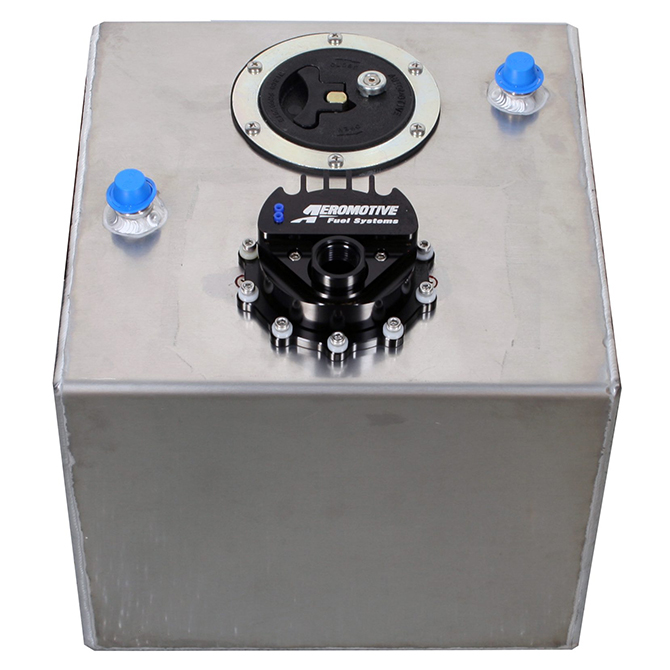

6-gallon Racing Fuel Cell with Stealth Eliminator Brushless Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.  This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and MOPAR Drag Pack cars.

• Baffled design keeps fuel at the pump inlet
• Fluted pickup with integrated 100-m prefilter
• The Eliminator performance you expect and more:
  • Fuel Injected Engines:
    up to 1900 FWHP – naturally aspirated
    up to 1400 FWHP – forced air induction
  • Carbureted Engines:
    up to 2300 FWHP – naturally aspirated
    up to 1700 FWHP – forced air induction
• E85 Compatible pump, reduce max FWHP by 30%
• Lighter than the traditional Eliminator pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• Quieter than the traditional Eliminator pump.
• ORB-10 outlet port.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.
• Fuel Cell Dimensions: 12″w x 12″l x 10″h

Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts
EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
